How to Choose the Right Center Joint for Your Equipment?

Choosing the right Center Joint can determine whether tracked equipment moves smoothly or suffers early hydraulic failure. This component transfers hydraulic oil between the upper structure and the undercarriage while allowing continuous rotation. Its work is hidden, but its consequences are visible. Oil leaks, weak travel, and sudden downtime often begin with a poor selection.

Reliability expert Ricky Smith offers a practical maintenance principle: “A component is reliable only when its design, installation, and operating conditions agree.” That principle applies directly to every Center Joint decision. Buyers should confirm the machine model, port arrangement, rotation range, pressure rating, flow capacity, and seal material. A joint that looks identical may use different internal passages or mounting dimensions. Small differences matter.

The working environment deserves equal attention. Mud can damage exposed seals. Heat can harden rubber materials. Repeated shock loads can loosen connections. Before ordering, compare the original part number with the equipment manual and inspect the existing joint for wear patterns. Measure carefully. Do not rely on appearance alone.

Experience also teaches an uncomfortable lesson: the cheapest option is not always economical. However, the most expensive joint is not automatically the best choice. That assumption needs reflection. Service history, supplier traceability, warranty terms, and replacement availability should influence the final decision. A correct Center Joint should fit the machine, survive its actual workload, and remain serviceable in the field. Real machines are messier than catalogs suggest. Therefore, careful verification still matters.

Table of Contents [Hide]

1 Define Equipment Geometry, Load, and Rotation Requirements

2 Match Port Size and Flow to 210–350 bar Hydraulic Circuits (ISO 4413)

3 Verify 360° Rotation, Torque, and Leakage Ratings

4 Check Seal Materials Across the OEM Temperature Range

5 Compare Fatigue Life, Installation Data, and Safety Factors

Define Equipment Geometry, Load, and Rotation Requirements

Choosing the right center joint begins with equipment geometry, not catalog size. Measure the upper and lower frame interfaces, bolt-circle diameter, pilot diameter, and installation height. A small alignment error can create uneven seal loading and accelerated wear. The joint must also match the machine’s swing radius and hose routing. ISO 4413:2010 requires hydraulic systems to consider pressure, leakage, and safe energy control. These details matter when the joint turns beneath a 20-ton excavator.

Define every load clearly. Record vertical weight, side force, impact load, and overturning moments. Static load is only part of the story. A machine working on broken rock may experience repeated shock loads that exceed its average duty. ISO 281:2007 uses equivalent dynamic load to estimate bearing life, but field conditions are rarely perfect. The 2024 World Mining Data report shows global mineral production exceeded 17 billion tonnes in 2022, highlighting the harsh duty cycles faced by mobile equipment. That figure does not define your machine, though. Site measurements remain more reliable.

Tips: Count required hydraulic passages, confirm continuous and intermittent pressure, and specify rotation speed separately. Check whether rotation is limited, oscillating, or continuous. Leave room for hose bend radius. A practical inspection is simple: paint a reference mark across the joint, run the machine, and check for unexpected movement. One overlooked detail? Temperature. High oil temperature can harden seals before visible leakage appears. I have seen drawings pass review, yet fail because the joint was selected for load, not real rotation behavior.

How to Choose the Right Center Joint for Your Equipment?

Define equipment geometry, load, and rotation requirements before selecting a center joint. The chart compares representative joint requirements across common equipment configurations.

Higher radial and axial loads require a larger load capacity, while more rotating circuits and higher continuous rotation speed increase the need for advanced rotary distribution. Always verify the final selection against the manufacturer’s load, pressure, speed, and installation specifications.

Match Port Size and Flow to 210–350 bar Hydraulic Circuits (ISO 4413)

Choosing a center joint at 210–350 bar starts with flow, not appearance. ISO 4413:2010 stresses safe pressure ratings, hose routing, and controlled energy release. Industry sizing data commonly keeps pressure-line velocity near 3–5 m/s. Higher velocity increases pressure loss, heat, and noise.

At 40 L/min

20 mm internal diameter gives about 2.1 m/s. A 25 mm port may therefore suit this circuit.

At 100 L/min

32 mm internal diameter produces roughly 2.1 m/s.

Do not select the joint from nominal port threads alone. Measure the actual bore. Thread size can hide a restrictive passage.

I have seen center joints fail early when designers matched pressure but ignored flow peaks. A 350-bar rating is not enough. Check continuous pressure, impulse pressure, rotation speed, seal compatibility, and side loading. ISO 4413 and ISO 4414-based risk practices support separating mechanical loads from hydraulic sealing loads.

The NFPA 2023 U.S. Fluid Power Shipments report shows a broad market split between mobile and industrial equipment, yet shipment data cannot replace a pressure-drop calculation. My own weak point is assuming the catalog flow rating reflects cold-oil conditions. It often does not.

Test the joint at startup temperature, peak flow, and the longest hose path. Small corrections matter.

Verify 360° Rotation, Torque, and Leakage Ratings

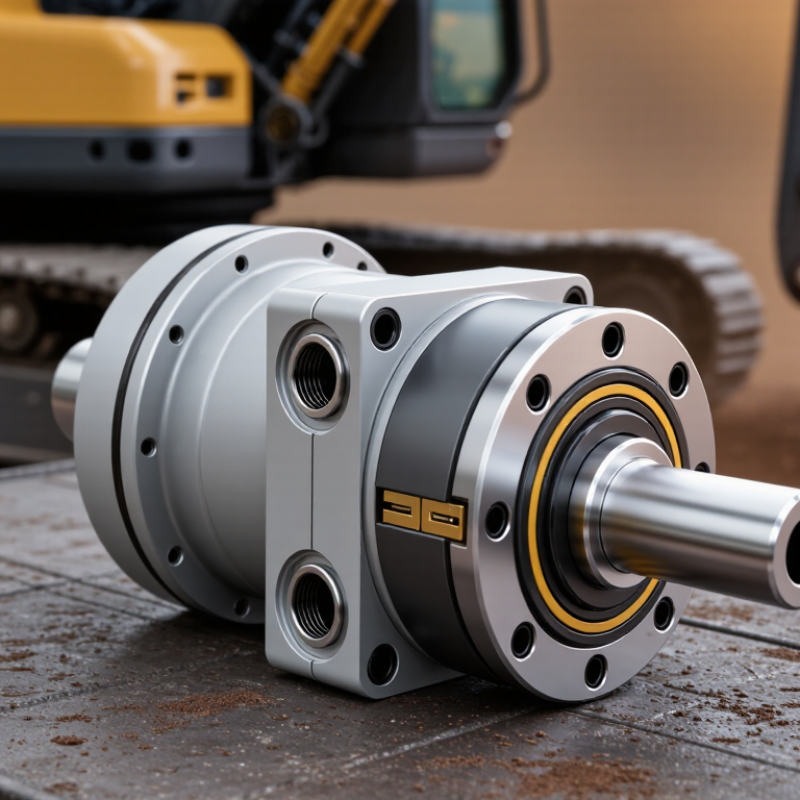

How to Choose the Right Center Joint for Your Equipment?

Verify 360° Rotation, Torque, and Leakage Ratings

A center joint must rotate smoothly through the machine’s full working envelope. Do not trust a catalog angle alone. Measure hose twist, port alignment, and rotation stops on the actual equipment. ISO 10771-1:2015 provides a recognized method for pressure impulse testing. Ask for test records, not only a maximum pressure number.

Torque ratings deserve equal attention. Static torque is not the same as breakaway torque during a cold start. Calculate torque from hose drag, attached piping, external loads, and acceleration. Then compare the result with the joint’s continuous and peak ratings. A practical review should include a safety margin, often 25% or more, but the machine designer must confirm it.

Leakage can appear after hundreds of cycles, not during a short bench test. ISO 4413:2010 emphasizes cleanliness, hose routing, and controlled hydraulic risks. Request leakage data at operating pressure, temperature, and rotational speed. Record any pressure decay in the test report. For example, a joint showing zero visible leakage may still fail a strict volumetric limit. That detail is easy to miss.

Field checks should include a clean white cloth around every seal after cycling. Inspect again after thermal expansion. I have seen good-looking assemblies fail because the return line forced side loading. The specification was correct, but the installation was not. Choose the joint using verified rotation, torque, and leakage evidence together.

Check Seal Materials Across the OEM Temperature Range

How to Choose the Right Center Joint for Your Equipment?

Check Seal Materials Across the OEM Temperature Range

A center joint may look simple, but its seals control long-term reliability. Start with the equipment manufacturer’s specified temperature range. Do not check only the average operating temperature. Short heat spikes can harden, soften, or deform an unsuitable seal.

Compare the seal material with hydraulic fluid, additives, and environmental exposure. A seal that performs well in clean oil may react poorly to contaminated fluid. Cold starts also matter. Some materials become stiff before the system reaches normal pressure. That stiffness can cause leakage around the rotating joint.

Review the full OEM range, including storage and transport conditions. Then check the supplier’s technical data for continuous and intermittent limits. These values are not always identical. Ask whether the rating applies to the seal alone or the complete center joint assembly.

Material selection is only part of the decision. Groove design, surface finish, pressure, and installation accuracy affect seal life. Inspect the shaft for scratches and uneven wear. Small damage can defeat an expensive seal.

A practical mistake is trusting a temperature number without checking the fluid. It happens more often than expected. When operating conditions are uncertain, record actual temperatures during cold starts and heavy work. Compare those readings with the documented limits before choosing the joint. That extra check may reveal a safer material or a better sealing design.

Compare Fatigue Life, Installation Data, and Safety Factors

How to Choose the Right Center Joint for Your Equipment?

A center joint must survive repeated loads, vibration, and changing operating conditions. Fatigue life is therefore more useful than a single rated load. Ask for cycle-test results, load ranges, temperature limits, and failure criteria. A joint exposed to dusty quarry roads faces different stress than one used indoors. Inspectors should also compare test conditions with real duty cycles. Laboratory numbers can look impressive but still mislead.

Installation data deserves equal attention. Confirm shaft dimensions, mounting-hole positions, hydraulic port orientation, seal type, and allowable misalignment. Record bolt torque and hydraulic pressure during installation. A small alignment error can create uneven seal wear within weeks. Clean oil matters too. One contaminated connection may shorten service life before the joint shows visible damage. Field technicians often catch these details.

Safety factors should reflect peak loads, not average loads. Consider shock loading, sudden braking, tilted ground, and attachments that increase leverage. Do not accept a generic factor without knowing its calculation basis. A higher factor is not automatically better; it can add weight, cost, and installation strain. Review maintenance records and previous joint failures with an experienced engineer. A spreadsheet may still hide bad assumptions. We have seen accurate measurements produce poor decisions when operators described the machine’s work incorrectly. Recheck the duty cycle before selecting the final joint.

How to Choose the Right Center Joint for Your Equipment? - Compare Fatigue Life, Installation Data, and Safety Factors

Generic engineering comparison guide for hydraulic center joints used in construction and mobile equipment
Equipment Duty Class	Typical Application	Continuous Working Pressure	Peak Pressure	Recommended Flow Rate	Typical Rotation Speed	Recommended Fatigue Life	Installation Torque Range	Minimum Hydraulic Safety Factor	Installation and Selection Guidance
Light Duty	Compact excavators, small loaders, access platforms	160–210 bar	200–250 bar	20–60 L/min per passage	5–15 rpm	At least 1,000,000 pressure cycles	70–120 N·m for main mounting bolts	1.5 × working pressure	Choose a compact joint with low pressure drop. Verify port orientation, hose bend radius, and clearance during the full steering or swing range.
Medium Duty	Mid-size excavators, agricultural loaders, material handlers	210–280 bar	280–350 bar	50–120 L/min per passage	3–12 rpm	At least 2,000,000 pressure cycles	120–220 N·m for main mounting bolts	1.5–1.75 × working pressure	Use hardened bearing and sealing surfaces where duty cycles are high. Confirm that the joint can tolerate simultaneous pressure, rotation, vibration, and side loading.
Heavy Duty	Large excavators, crawler machines, heavy loaders, drilling equipment	280–350 bar	350–420 bar	100–220 L/min per passage	1–8 rpm	At least 3,000,000 pressure cycles	220–450 N·m for main mounting bolts	1.75–2.0 × working pressure	Prioritize structural rigidity, pressure resistance, and contamination control. Check housing strength and bearing load capacity against the machine’s maximum external loads.
Severe Duty	Mining machines, demolition equipment, continuous-duty drilling systems	350–420 bar	420–500 bar	150–300 L/min per passage	0.5–5 rpm	At least 5,000,000 pressure cycles	450–800 N·m for main mounting bolts	2.0 × working pressure	Require documented pressure-pulse testing and fatigue validation. Specify high-strength fasteners, robust wiper protection, and a controlled installation procedure.

Engineering note: The values above are generic selection ranges for preliminary comparison, not a substitute for equipment-specific validation. Final selection should be based on actual pressure peaks, flow demand, rotation angle, external loads, temperature, contamination level, mounting dimensions, thread specifications, and the manufacturer’s verified test data.
