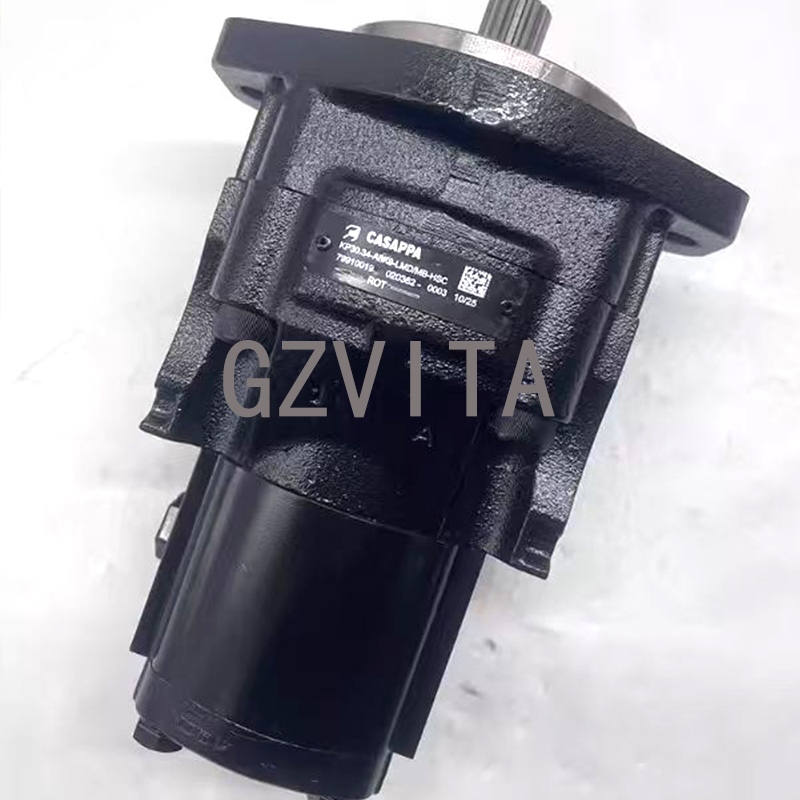

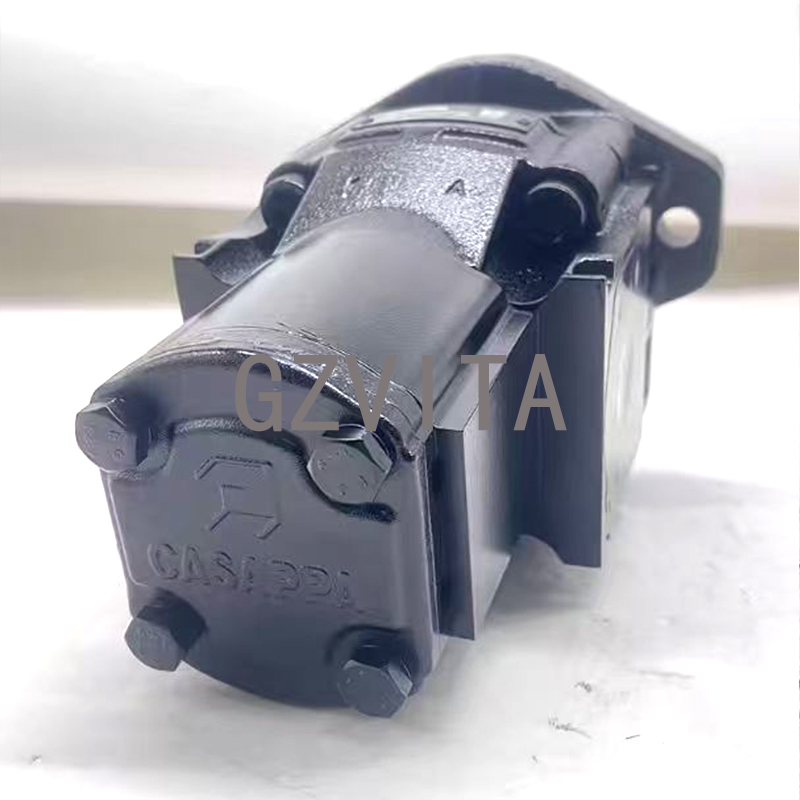

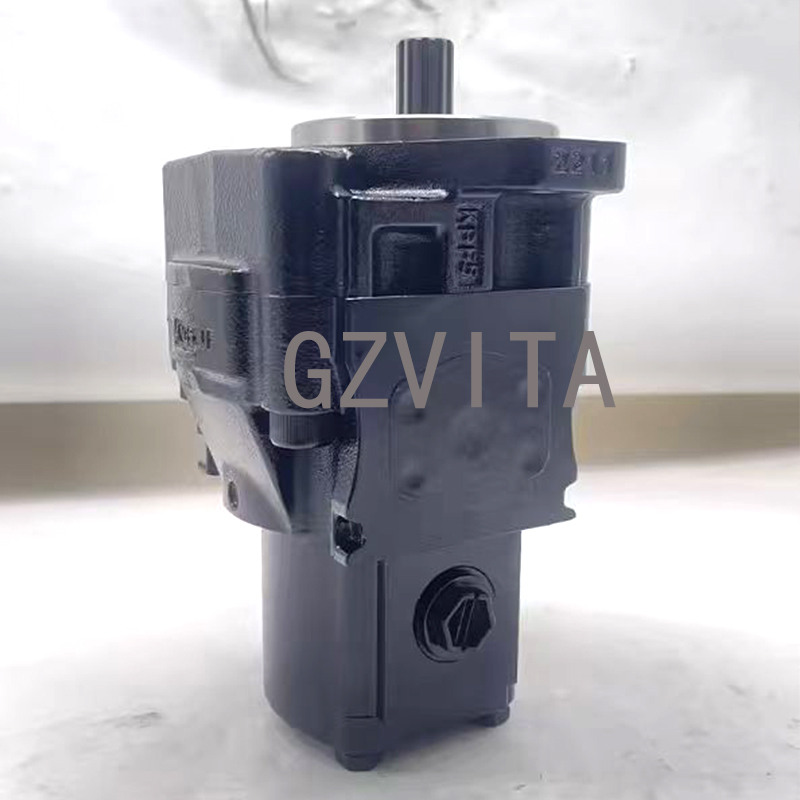

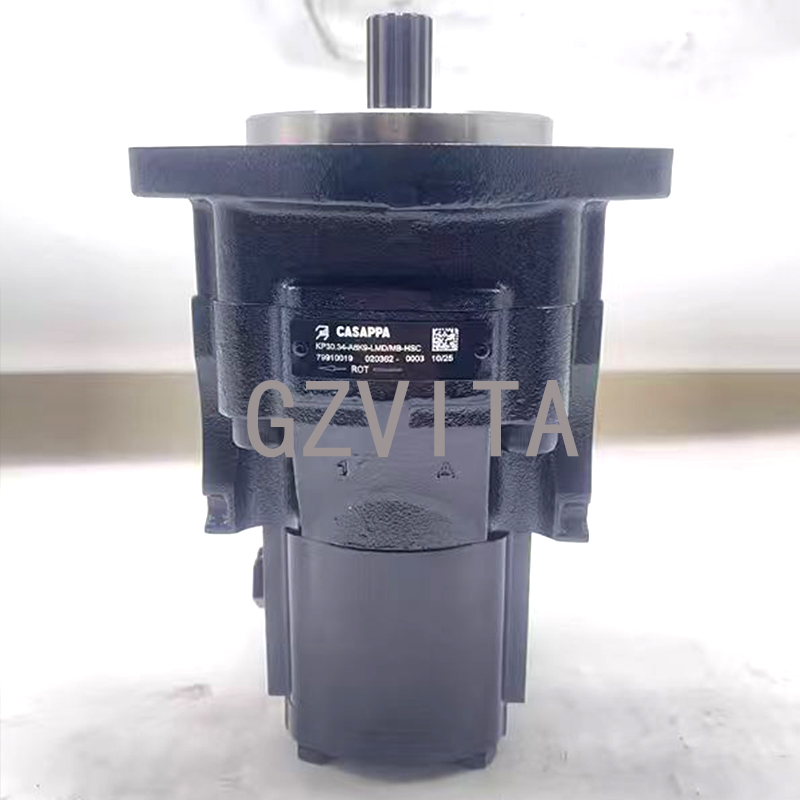

Casappa Hydraulic Pump KP30.34-A8K9 Gear Pump 79910019 799193MU for SDLG 400 500 600 Excavator Fan Pump

1. Primary Function:

· Powers the hydraulic cooling fan for the entire machine.
· Drives a high-flow fan to cool the engine radiator.
· Cools the hydraulic oil via the hydraulic oil cooler.
· Cools the transmission system through the transmission oil cooler.
· Provides on-demand cooling based on system temperatures.
· Its sole function is to manage the thermal load of the machine.

2. Technical Operation & Control:

· Typically a variable-displacement piston pump.
· Operates on a load-sensing or temperature-sensing control principle.
· Adjusts fan speed independently of the engine speed.
· Receives signals from temperature sensors (engine coolant, hydraulic oil).
· Modulates its displacement to control fan speed and airflow.
· Provides infinitely variable fan speed control for precise cooling.
· Reduces pump flow and power consumption when cooling demand is low.
· Maximizes airflow only when high heat loads are detected.
· Integrates with the machine's electronic control system.
· Its control valve responds to pilot pressure signals from a thermostatic valve.

3. Efficiency & Performance Advantages:

· Significantly improves fuel efficiency compared to engine-driven fans.
· Reduces engine parasitic load, freeing up horsepower for work functions.
· Lowers overall noise levels, especially at low engine RPM or idle.
· Optimizes engine operating temperature for better performance and emissions.
· Maintains consistent optimal temperatures for all critical fluids.
· Prevents overheating in severe ambient conditions or under heavy loads.
· Extends component life (engine, hydraulics, transmission) by maintaining proper temperatures.
· Improves cab comfort by reducing fan noise and directing heat away.
· Allows the engine to operate at its most efficient RPM regardless of cooling needs.
· Contributes to higher productivity by preventing heat-related downtime.

4. Component Integration & Design:

· Dedicated pump solely for the fan motor circuit.
· Mounted on and driven by the engine's accessory drive.
· Delivers high-pressure oil to a hydraulic fan motor.
· The fan motor is directly mounted on the fan hub.
· Works in a closed-loop or open-loop circuit with the fan motor.
· Designed for reliability and continuous operation in dusty environments.
· Built with robust materials to withstand high temperatures and pressure spikes.
· Features integrated control valves and pressure compensators.
· Includes ports for pressure measurement and system diagnostics.
· Designed for easy servicing and component replacement.

5. Operational Benefits & Scenarios:

· Provides powerful cooling during high-power digging and loading cycles.
· Automatically reduces fan speed in cold weather for faster warm-up.
· Quieter operation is beneficial in urban or noise-sensitive areas.
· The fan can run briefly after engine shutdown for post-cooling.
· Enhances performance in high-altitude environments where cooling is less efficient.
· Protects the machine when radiators are partially blocked by debris.
· Improves visibility for the operator by minimizing hot air recirculation.
· Contributes to meeting modern engine emission standards by maintaining optimal temperature.
· The system is self-regulating, requiring no operator input.
· Faster engine response is possible as the engine isn't driving a massive fan directly.

Product Details

Product Introduction

The excavator piston pump plays a crucial role in the hydraulic system of an excavator, which is essential for its operation. Here are the key functions and roles of the excavator piston pump:
Hydraulic Fluid Generation: The piston pump generates hydraulic fluid pressure by using pistons to compress hydraulic oil. This pressurized fluid is essential for powering various hydraulic components of the excavator.
Powering Hydraulic Functions: The hydraulic pressure produced by the piston pump is used to operate the excavator’s hydraulic cylinders, which control the movement of the boom, arm, bucket, and other attachments. This allows for precise and powerful movements necessary for excavation tasks.
Efficiency and Performance: Piston pumps are known for their high efficiency and ability to deliver a consistent flow of hydraulic fluid under varying loads. This ensures that the excavator can perform effectively in different working conditions.
Variable Displacement: Many excavator piston pumps are designed with variable displacement capabilities, allowing them to adjust the flow rate and pressure based on the demands of the hydraulic system. This feature enhances the machine’s performance and fuel efficiency.
Durability and Reliability: Piston pumps are built to withstand high pressures and harsh working environments, making them a reliable choice for heavy machinery like excavators. Their robust design contributes to the overall longevity of the hydraulic system.

Control and Precision: The hydraulic system, powered by the piston pump, allows for precise control of the excavator’s movements. Operators can make fine adjustments to the position and force applied by the excavator’s components, which is critical for tasks that require accuracy.
Excavator piston pump is a vital component that enables the hydraulic system to function effectively, providing the necessary power and control for the excavator’s operations.
