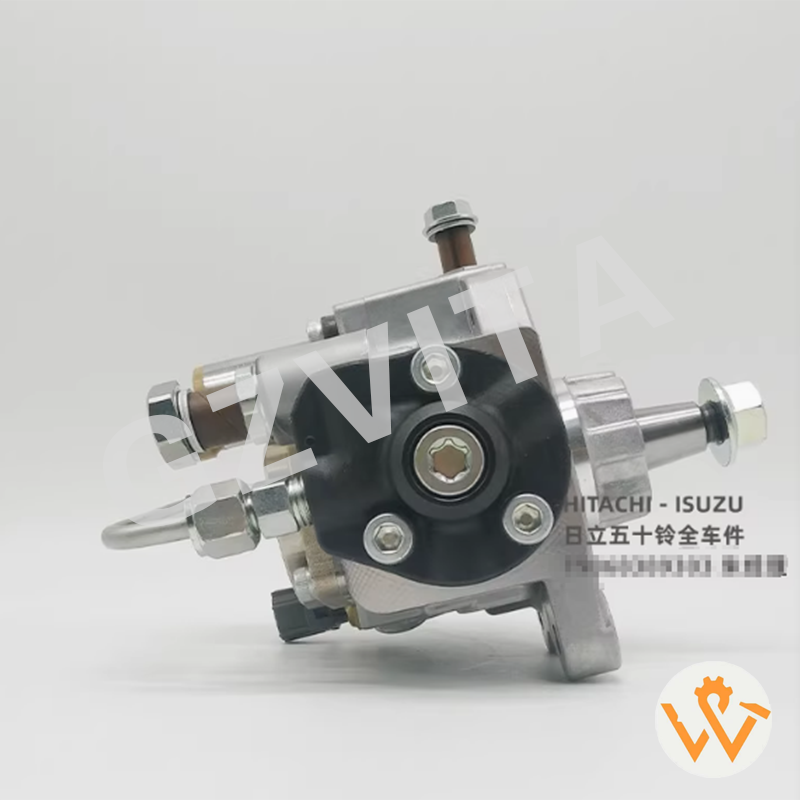

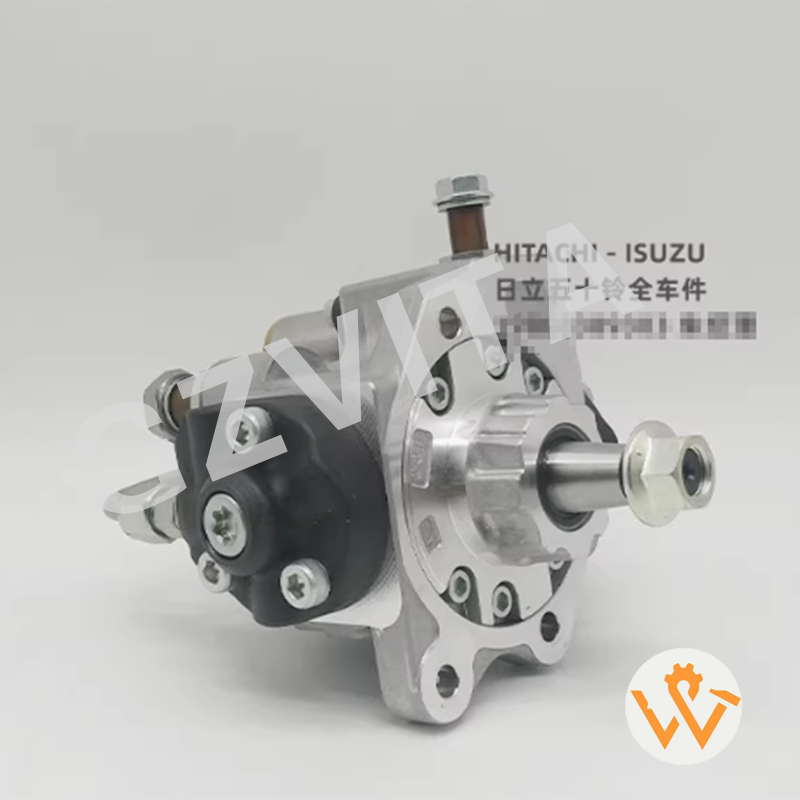

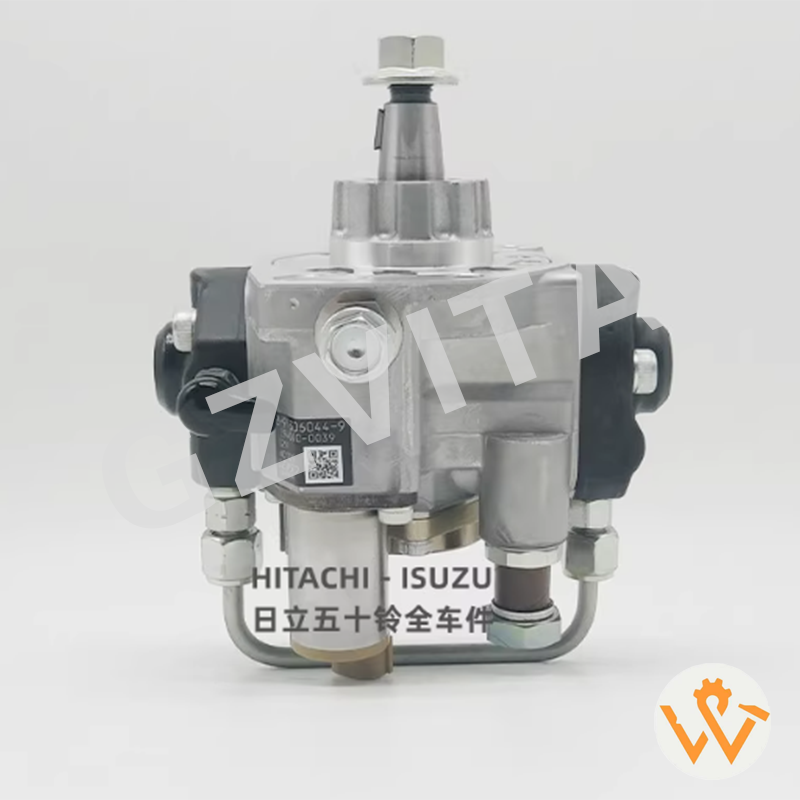

Genuine 8-97306044-9 8-97306044-8 Fuel Injection Pump 294000-0039 High Pressure Oil Pump for ISUZU 4HK1 Diesel Engine

Mechanical fuel injection pump​ - Traditional system used in many Isuzu engines.

High-pressure generation​ - Creates pressure far exceeding the engine's compression pressure.

In-line pump design​ - Features a separate plunger and barrel for each cylinder, aligned in a row.

Distributor-type pump (VE)​ - A single pumping element distributes fuel to each injector in firing order.

Common Rail system (modern)​ - Uses a high-pressure rail to supply fuel to electronically controlled injectors.

Plunger and barrel assembly​ - The core pumping element where reciprocating motion creates pressure.

Camshaft-driven​ - Pump is driven by and synchronized with the engine camshaft.

Reciprocating plunger​ - Moves up and down within its barrel to pressurize fuel.

Helical control groove​ - On the plunger, regulates fuel delivery by varying the spill port uncover timing.

Fuel metering​ - Precisely controls the volume of fuel delivered per stroke.

Delivery valve​ - A one-way valve that ensures sharp injection cutoff and prevents drip.

Port-and-helix metering​ - The plunger's rotation changes the effective stroke via the helical groove alignment with the spill port.

Governor linkage​ - Connects to the accelerator and controls the pump's rack or control sleeve.

Centrifugal governor​ - Uses rotating weights to automatically control maximum and idle speeds.

Control rack (in-line pumps)​ - A toothed rod that rotates all plungers simultaneously to change fuel delivery.

Control sleeve (distributor pumps)​ - Slides to alter the effective stroke of the single plunger.

Timing advance mechanism​ - Automatically advances injection timing as engine speed increases.

Hydraulic timing advance​ - Uses fuel pressure to move the pump's internal cam ring.

Feed pump​ - A low-pressure transfer pump that supplies fuel from the tank to the injection pump.

Vane-type supply pump​ - Common in distributor pumps to provide internal fuel feed and lubrication.

Fuel pressure regulation​ - Maintains correct internal feed pressure for proper operation.

Full-load stop​ - A mechanical adjustment limiting maximum fuel delivery to prevent over-fueling.

Idle speed adjustment​ - Sets the minimum stable running speed.

Internal fuel lubrication​ - Fuel itself lubricates the pump's internal moving parts.

Fuel cooling​ - Circulating fuel helps carry away heat from the pump.

Spill port​ - The opening in the barrel that, when uncovered by the plunger's groove, ends delivery.

Beginning of delivery​ - The moment the plunger closes the inlet port, pressure starts to rise.

End of delivery​ - The moment the plunger's helical groove aligns with the spill port, pressure collapses.

Constant-pressure chamber (common rail)​ - The "rail" that stores fuel at ultra-high pressure (e.g., 1600-2500 bar).

High-pressure fuel lines​ - Robust tubing connecting the pump to the injectors or rail.

Pressure accumulation​ - Common Rail stores pressurized fuel, ready for instant injection.

Electronic control​ - An Electronic Control Unit (ECU) precisely governs injection timing and duration in modern systems.

Solenoid-operated injectors​ - The ECU energizes a solenoid to open the injector nozzle.

Piezoelectric injectors​ - Use a crystal stack for faster, more precise multiple injections.
